Description

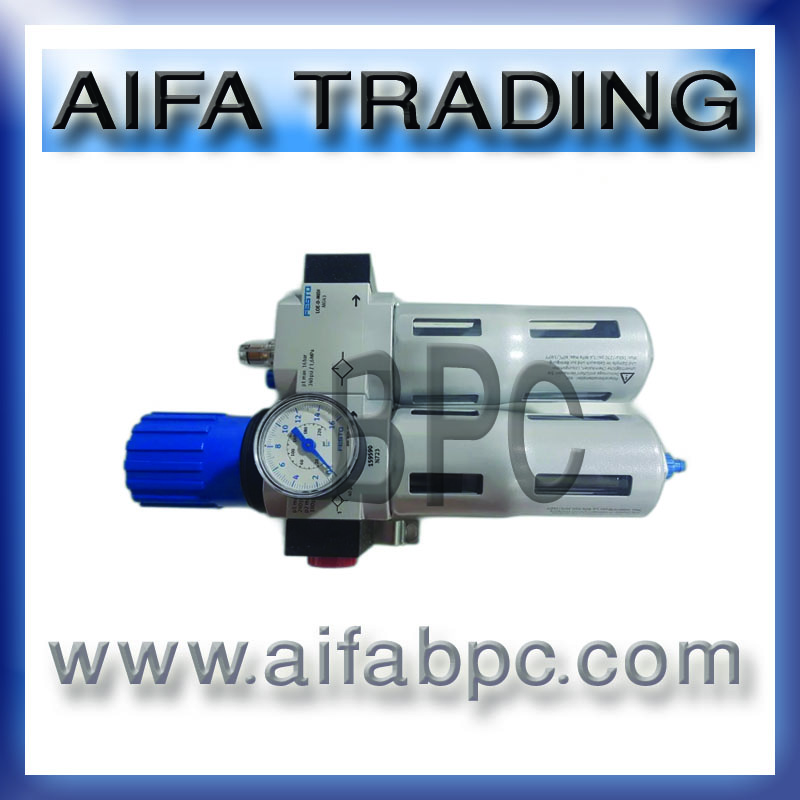

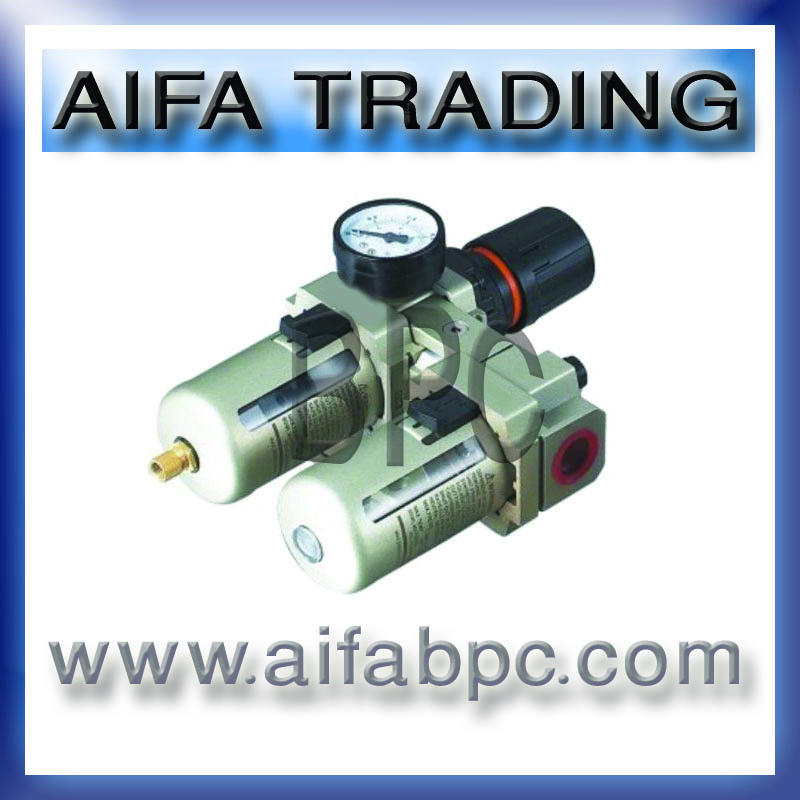

This AC pneumatic FRL (Filter Regulator Lubricator) unit is used to filter out contaminants larger than 5 μm, Guaranteed pressure resistance 1.5mpa, max pressure 1 mpa, and lubricate the air with oil. Includes a pressure gauge. The max flow rate is 1200 l/min (always use the flow chart for correct sizing). The semi-auto drain valve will open every time the compressed air is shut off. Suitable max input and temperatures between 5 and 60 °C. The min flow for oil drip is 50 l/min. The oil capacity is 55 cm3. To adjust the output pressure, pull the hand wheel up and twist. Lock by pushing the wheel back in. Includes mounting bracket.
Pros
• Combines three functions (filtering, regulating, lubricating) in one, compact device
• It has a semi-auto condensate drain to reduce maintenance cost
• It has a mounting bracket to mount it to a wall or your machine
Cons
• It has a semi-auto condensate drain, which is suited for systems that are regularly depressurized. In some other cases, automatic condensate drains might be preferred
• For some applications, it is not required to use all three functions (filtering, regulating, lubricating). Only select a lubricator when down-stream equipment requires lubrication
